ADC

Analog to Digital Conversion - Read a voltage and convert it to a number!

PreviousPWMNextServo Motor

Last updated 1 year ago

Was this helpful?

ADC Pins - A1, A2, A18, A17

While all ADC pins are digital pins, not all digital pins are ADC pins.

Code

"""

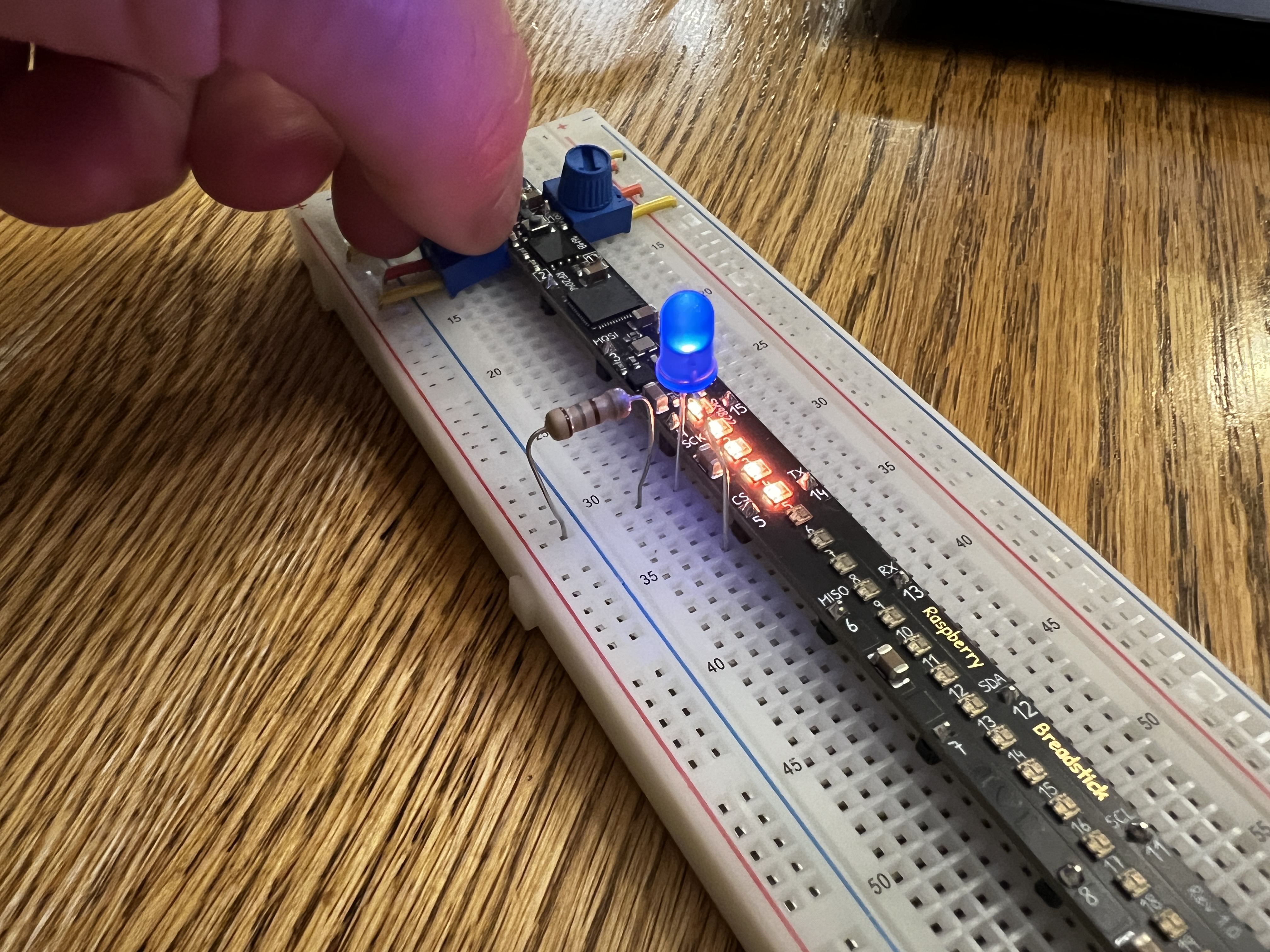

ADC Demo Code
Breadstick Innovations
April 26, 2024
https://learn.breadstick.ca/breadstick/breadsticks/raspberry-breadstick/code-examples/adc

ADC converts 0-3.3V to 16-bit integer
RP2040 has a 12-bit ADC but CircuitPython converts it to a 16-bit result.
2^16 = 65536 values
0 is one of those values,
so the range is 0-65535.
3.3V/65535 steps = 50uV/step
You won't actually measure at 50uV accuracy, closer to 1mV accuracy.
"""

from board import *
from pwmio import PWMOut
from analogio import AnalogIn
from time import sleep
from adafruit_dotstar import DotStar


def convert_voltage(ADC_value):
    return 3.3 / 65535 * ADC_value


def convert_range(ADC_value, from_max, to_max):
    return int(ADC_value / from_max * to_max)


pot_1 = AnalogIn(A1)
pot_18 = AnalogIn(A18)

led_5 = PWMOut(D5, frequency=500, duty_cycle=0)

leds = DotStar(DOTSTAR_CLOCK, DOTSTAR_DATA, 24, brightness=0.02, auto_write=False)

RED = (255, 0, 0)
ORANGE = (255, 75, 0)
GREEN = (0, 255, 0)
BLUE = (0, 0, 255)
OFF = (0, 0, 0)

leds.fill(OFF)
leds.show()

while True:
    ADC_1 = pot_1.value
    ADC_18 = pot_18.value

    led_5.duty_cycle = ADC_1

    voltage_1 = convert_voltage(ADC_1)
    voltage_18 = convert_voltage(ADC_18)
    print((voltage_1, voltage_18))

    bar_graph = convert_range(ADC_18, 65535, 25)
    leds.fill(OFF)
    for i in range(bar_graph):
        leds[i] = ORANGE
    leds.show()

    sleep(0.04)
