# Assembly Guide

### Interactive BOM

<https://breadstick-docs.pages.dev/S1/ibom>

### Component List

* 1x Raspberry Pi Pico
* 1x Pico Slice 1 PCB
* 6x 300Ω Resistors
* 1x Red LED
* 1x Green LED
* 1x Blue LED
* 1x RGB Common-Cathode LED
* 3x 1kΩ Resistors
* 3x 50Ω Potentiometers
* 4x Standoffs

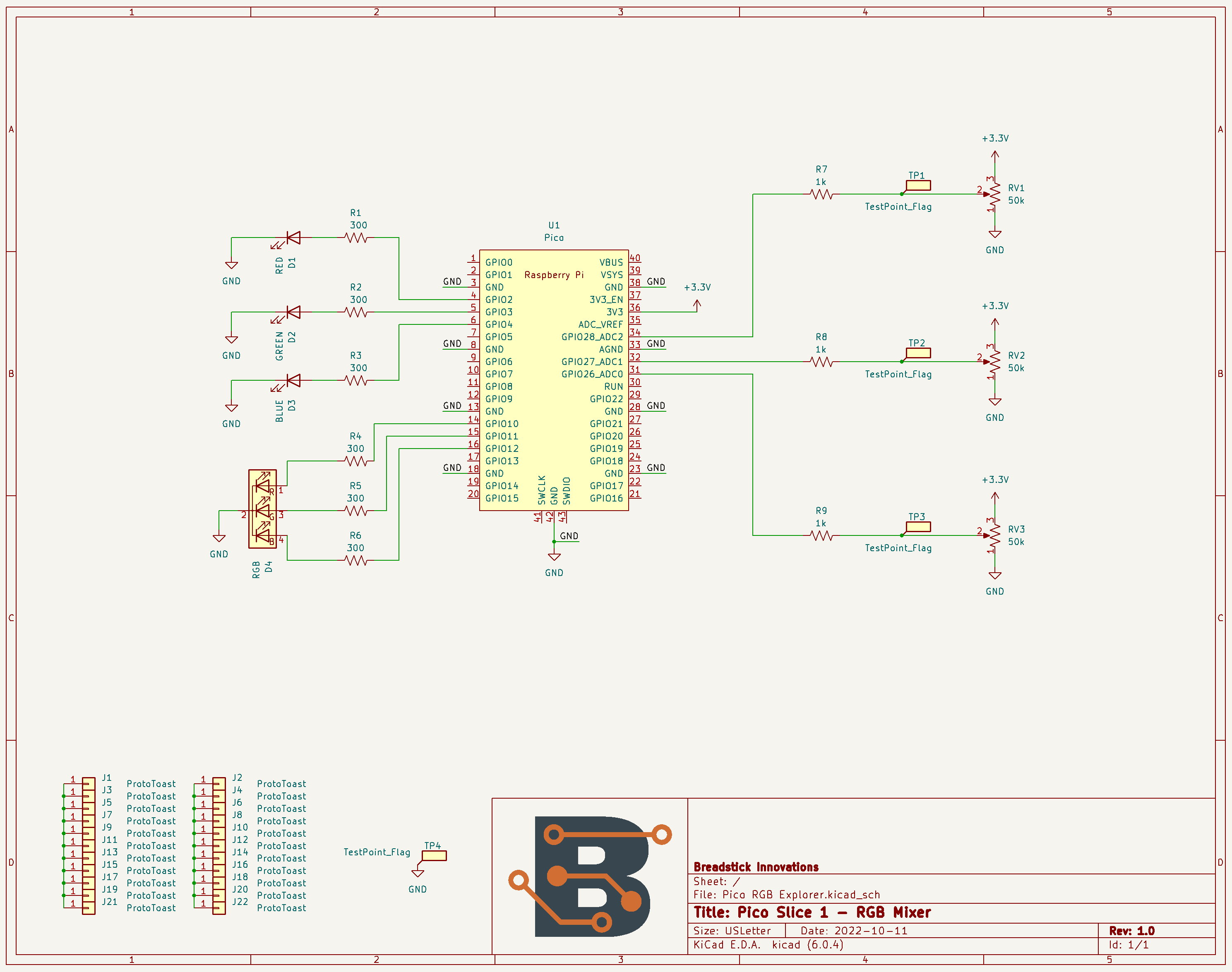

### Schematic

<figure><img src="https://2808519483-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FI2jtNl20mw4WYRE8MWgw%2Fuploads%2FGy1FlIjxi84EqBOXEYQz%2Fimage.png?alt=media&#x26;token=b04263c3-c085-40e6-bea4-66bb25c9de66" alt=""><figcaption></figcaption></figure>

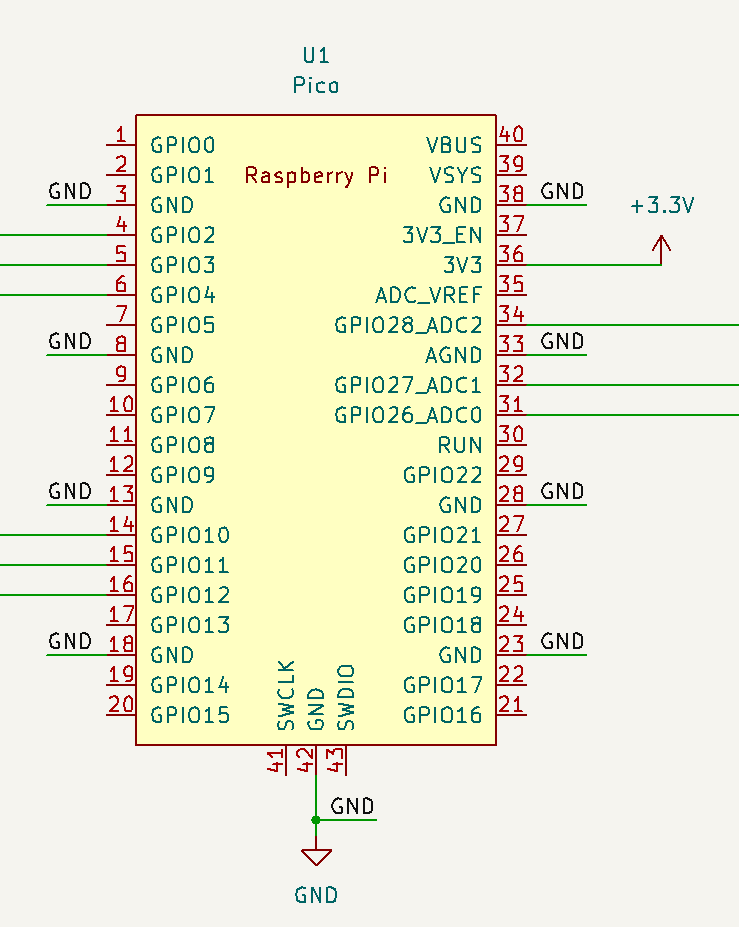

### 1. Pico

<figure><img src="https://2808519483-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FI2jtNl20mw4WYRE8MWgw%2Fuploads%2FdQLOTexQc3QD8M8szcvC%2Fimage.png?alt=media&#x26;token=f2b3944c-cdd8-43e4-950a-4df9b678237a" alt=""><figcaption></figcaption></figure>

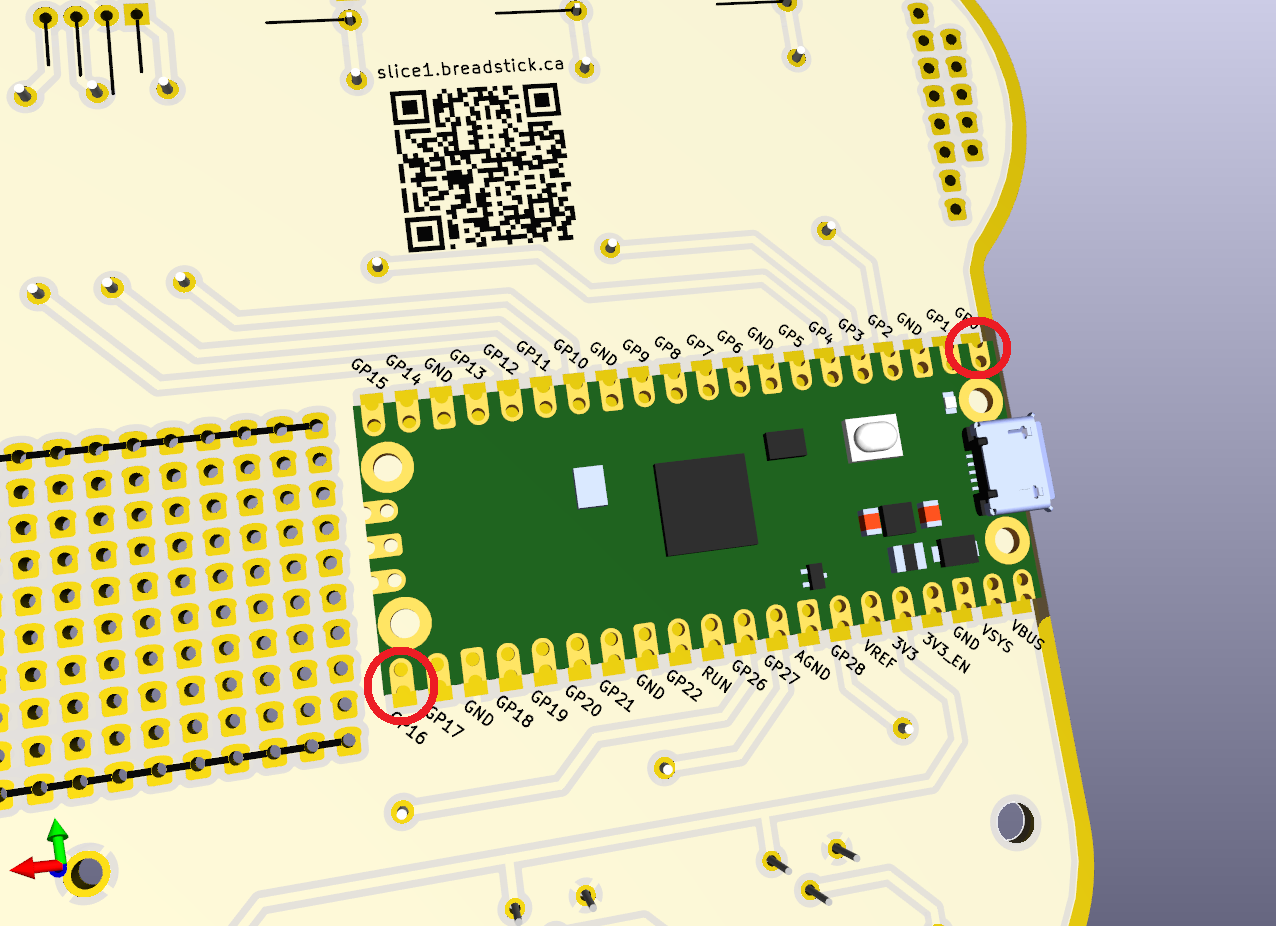

Position the Pico and tack in in place by soldering one of the corner pins. Make adjustments and lock it in place by soldering the opposing corner.

<figure><img src="https://2808519483-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FI2jtNl20mw4WYRE8MWgw%2Fuploads%2FI8EGVmVmTeaiqOAm55cK%2Fimage.png?alt=media&#x26;token=4f4bcec3-85ca-4b8e-ae2f-b49fb9ce20e7" alt=""><figcaption></figcaption></figure>

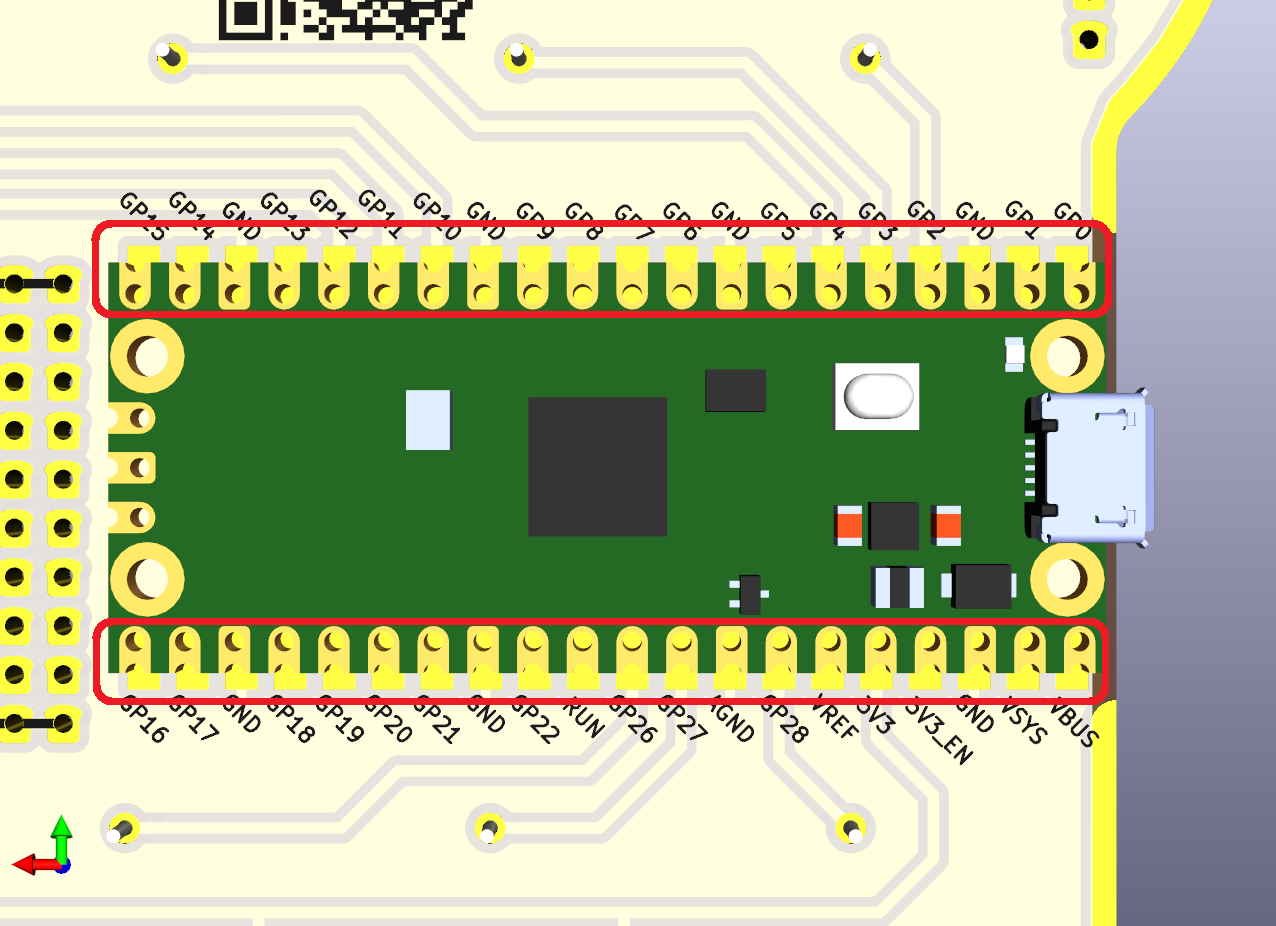

Now that it's held in a good position, solder the rest of the pins.

<figure><img src="https://2808519483-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FI2jtNl20mw4WYRE8MWgw%2Fuploads%2Fj7SgpLB5gkLinFadoTkD%2Fimage.png?alt=media&#x26;token=aefa6458-434c-46c7-b49a-8f70e7ab02cd" alt=""><figcaption></figcaption></figure>

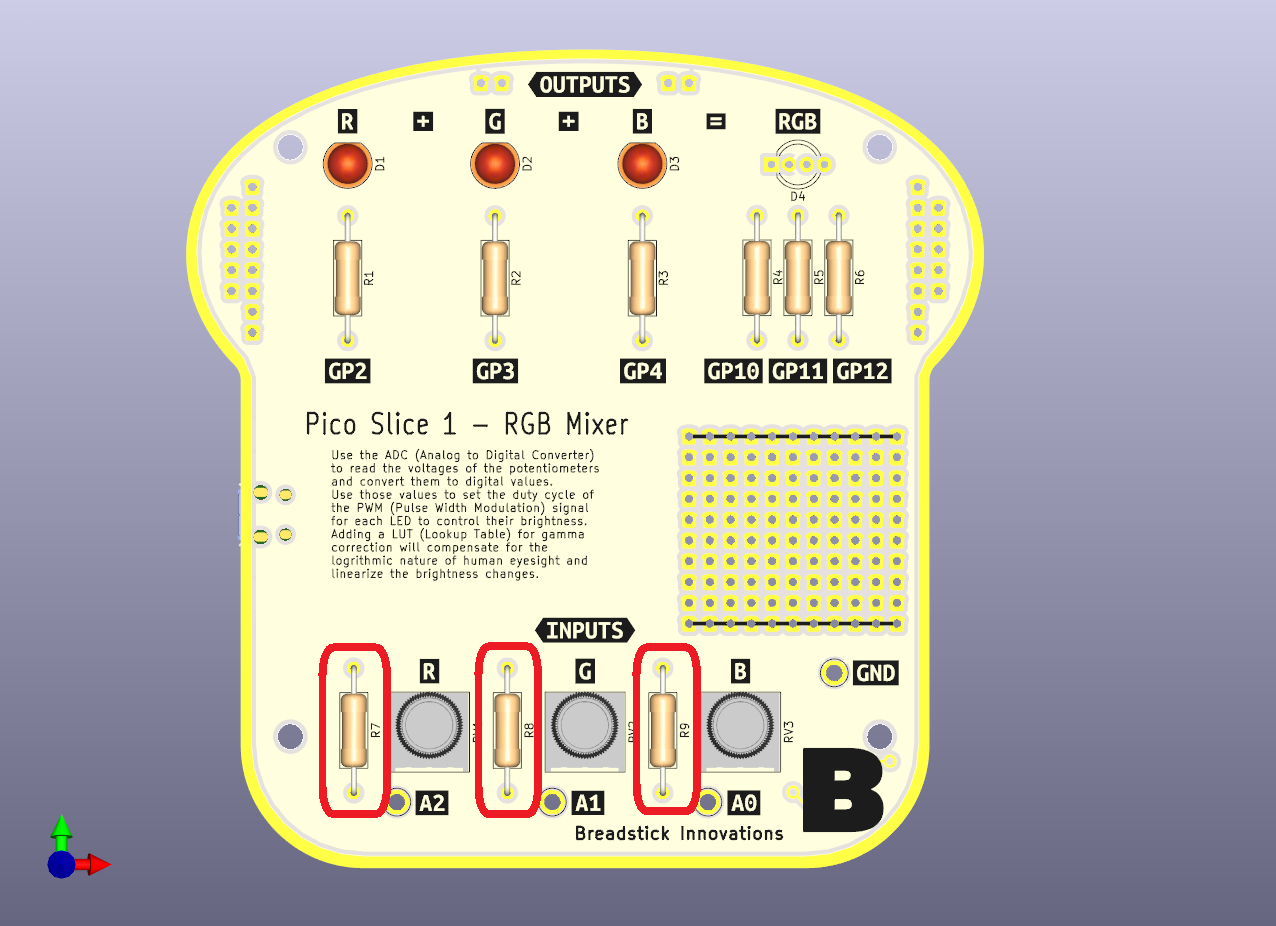

### 2. Potentiometer Protection Resistors

<figure><img src="https://2808519483-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FI2jtNl20mw4WYRE8MWgw%2Fuploads%2FgHEsAsX2rMyR1iSgRjfc%2Fimage.png?alt=media&#x26;token=2f6295fc-9140-4bf3-9bb3-2849c8e089c1" alt=""><figcaption></figcaption></figure>

<figure><img src="https://2808519483-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FI2jtNl20mw4WYRE8MWgw%2Fuploads%2FekWep8PBfKvjmHja9e4B%2Fimage.png?alt=media&#x26;token=5355d64f-b419-4419-bc9d-f21572108812" alt=""><figcaption></figcaption></figure>

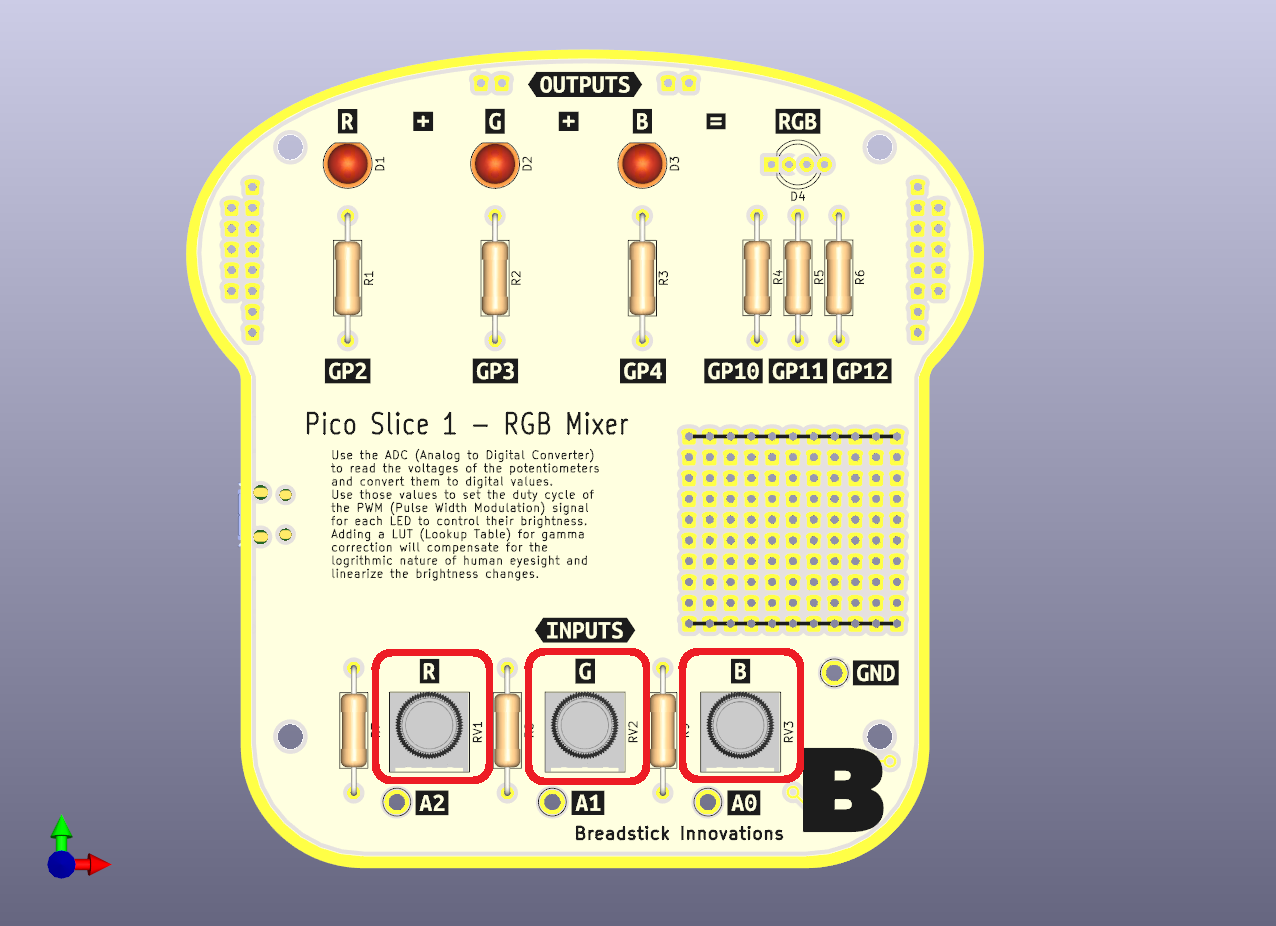

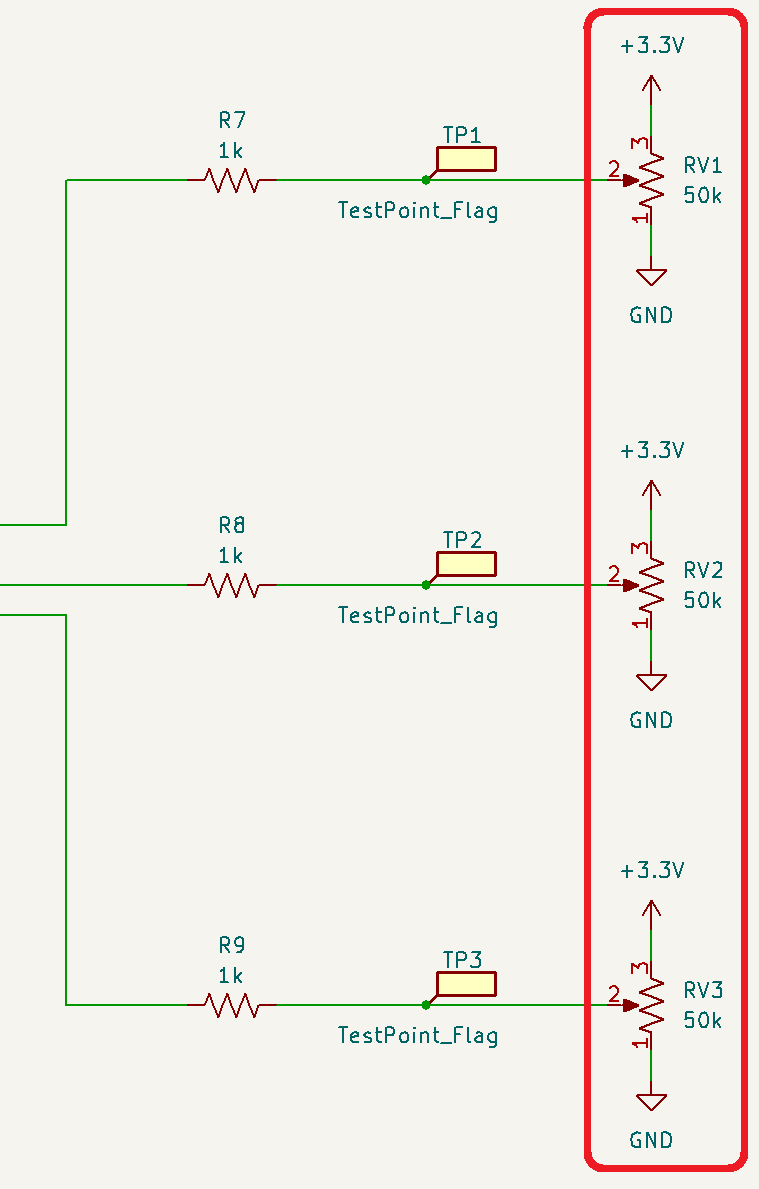

### 3. Potentiometers

<figure><img src="https://2808519483-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FI2jtNl20mw4WYRE8MWgw%2Fuploads%2FS68RWcK5prB0SYe8zItr%2Fimage.png?alt=media&#x26;token=02ec56fb-afe7-440d-b76a-c01320110a8e" alt=""><figcaption></figcaption></figure>

<figure><img src="https://2808519483-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FI2jtNl20mw4WYRE8MWgw%2Fuploads%2FBsRroifxkCWhCmqkbPty%2Fimage.png?alt=media&#x26;token=b6eb0291-af1a-4906-97c8-939470af6ec8" alt=""><figcaption></figcaption></figure>

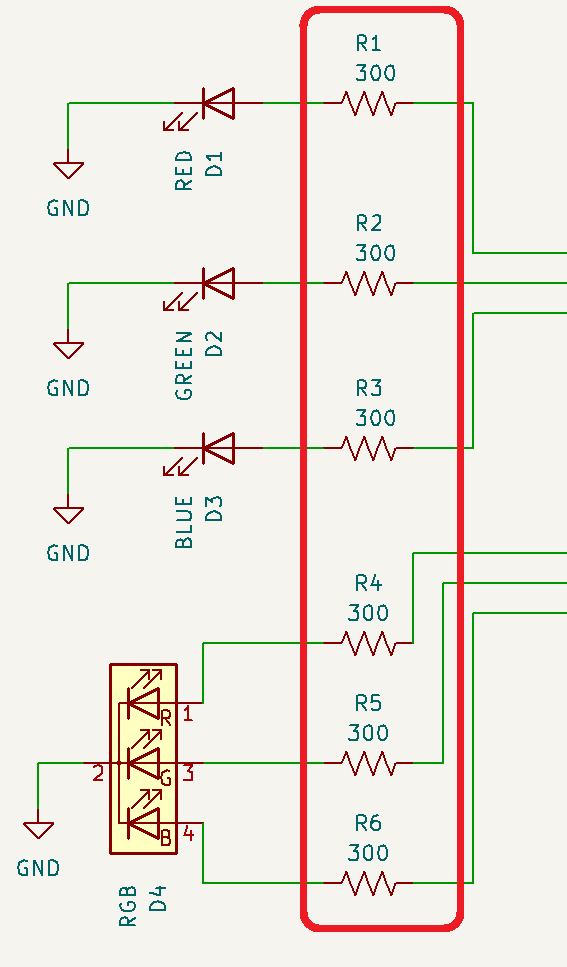

### 4. LED Current Limiting Resistors

<figure><img src="https://2808519483-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FI2jtNl20mw4WYRE8MWgw%2Fuploads%2FoUQ41l2sxRyPwMMOVpCO%2Fimage.png?alt=media&#x26;token=6f96717e-a22d-4b33-b345-674ec1f9d2a3" alt=""><figcaption></figcaption></figure>

<figure><img src="https://2808519483-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FI2jtNl20mw4WYRE8MWgw%2Fuploads%2FiJtt7aeZoYly9NlS0Rwk%2Fimage.png?alt=media&#x26;token=18ef7903-3805-4f7a-b322-0c18edf953ef" alt=""><figcaption></figcaption></figure>

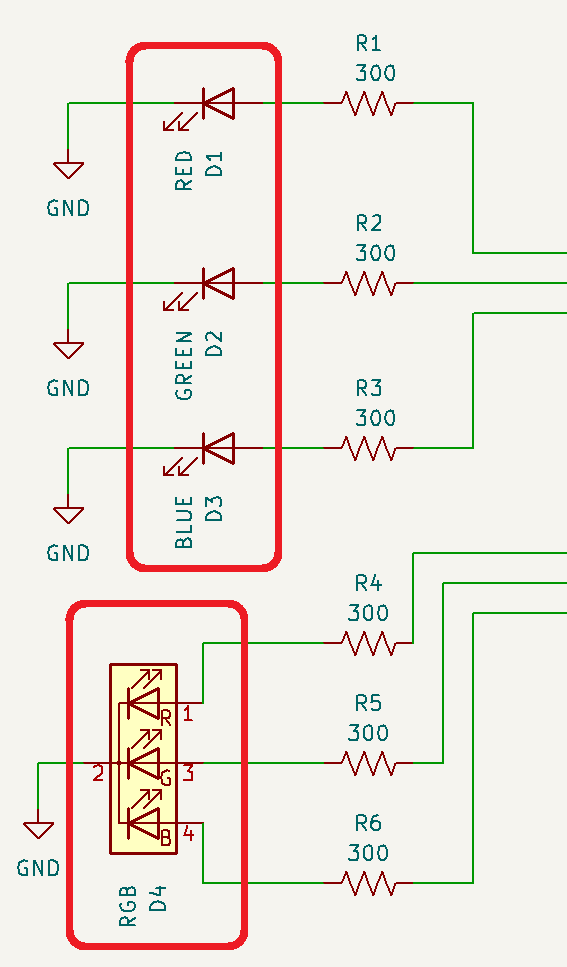

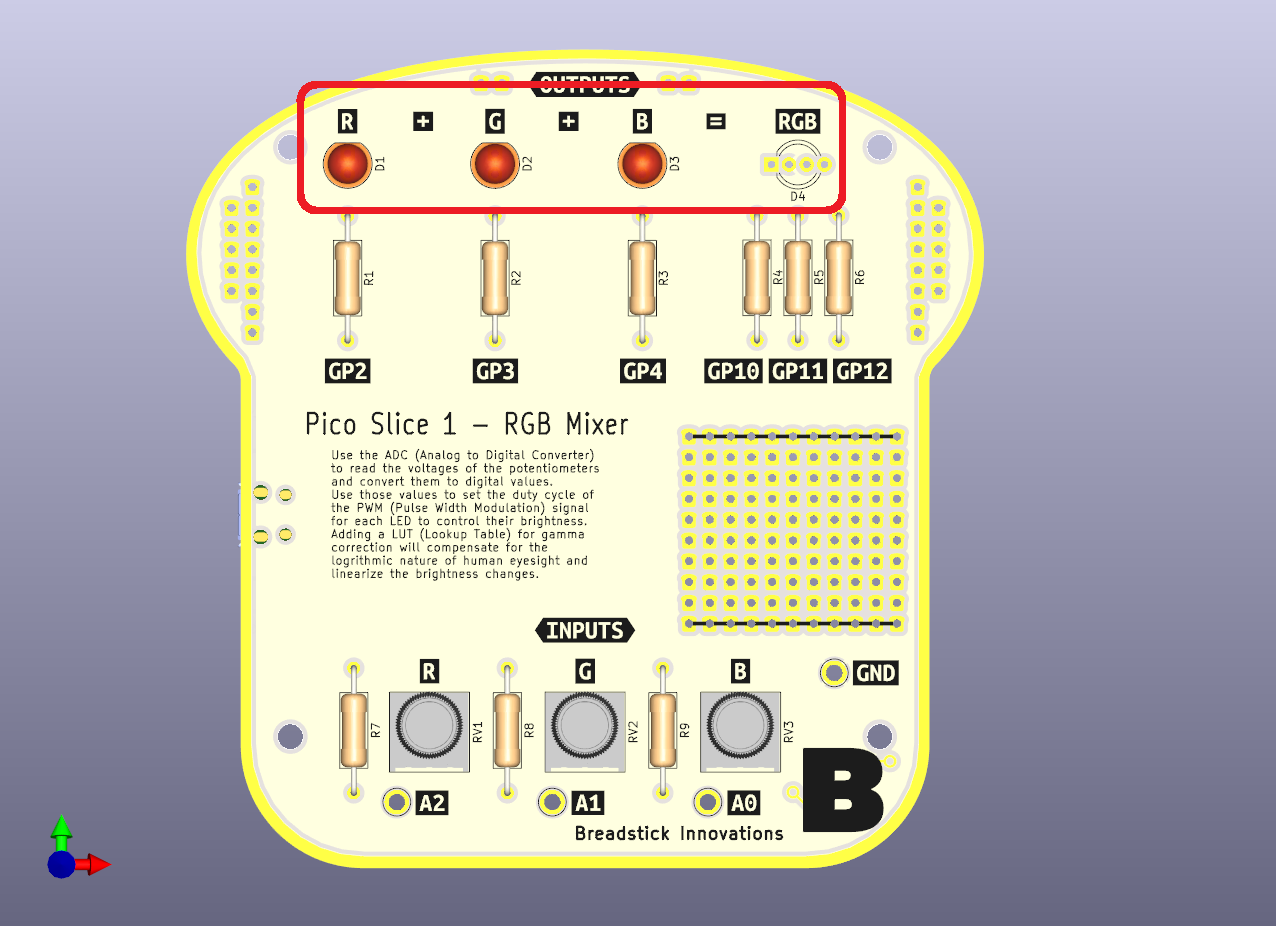

### 5. LEDs

<figure><img src="https://2808519483-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FI2jtNl20mw4WYRE8MWgw%2Fuploads%2Fm3rXaYKZkNFudSUjJIeR%2Fimage.png?alt=media&#x26;token=e04dc5a8-af69-4dec-97d3-2642329b91dd" alt=""><figcaption></figcaption></figure>

<figure><img src="https://2808519483-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FI2jtNl20mw4WYRE8MWgw%2Fuploads%2FRUXOgXaVmU0I0LHaT5I8%2Fimage.png?alt=media&#x26;token=79214dde-94fe-4159-b14d-b5c6e7f7f857" alt=""><figcaption></figcaption></figure>
